Large Caliber Hose Crimping Machine Designed on Customers Demand

Price: 40.0~80.0 EUR
Payment Terms: L/C
Place of Origin: Hebei, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 223
Packing: 50
Means of Transport: Land

The large caliber hose crimping machine is designed on the basis of our customers' demand to satisfy the special applications in hose crimping.

 This kind of hose crimping machine is special designed and invented by our research and development department on the basis of customers' demand to cater to the unique applications. After our long period production sales we aware that though we have manufactured many types hose crimping machines but there is no one for large caliber hoses. Therefore in the help of our engineers and the demands of customers the large caliber hose crimping machines are produced. There are two types namely super large caliber hose crimping machine and large caliber hose crimping machine.

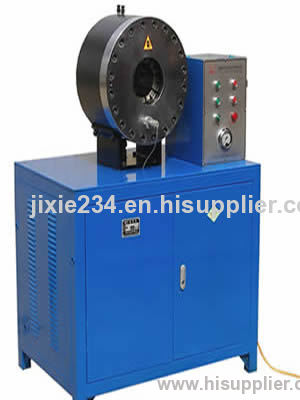

Super large caliber hose crimping machine in our workshop Large caliber hose crimping machine designed by us
Super large caliber hose crimping machine brief introduction:
The super large caliber hose crimping machine is our new and latest type hose crimper for flange joints, heterotypic elbows and irregular joints with the features of large opening range and accurate position.
Specifications:
Crimping range: the device can crimp hoses within 150mm as customers' requirements
Die size :116×100
Opening: + 70mm
Max open without die: 176mm
Crimping force: 4100KN
Crimping speed: 500/h
Systematic pressure: 31.5Mpa
Motor: 5.5KW
Voltage: 380V, 50HZ
Weight: 430kg
Overall size: 760×630×1480mm
Large caliber hose crimping machine specifications
Crimping range: φ6mm—φ102mm
Supplied die sets: 11 (can be customized)
Die size: 104×66 or 132×110 or 142×110
Opening: +30mm
Crimping force: 1100KN
Systematic pressure: 31.5MPa
Motor: 5.5KW
Voltage: 380V/50 HZ
Weight: 640Kg
Volume: 1015×680×1500mm
